作者: 邢凯杰    时间: 2019-7-21 23:58:43     标题: 达喀尔拉力赛和ALLISON变速器

Trucks with Allison transmissions take top five positions on the grueling Dakar 2019 rally raid19th February 2019 By propel-admin


The robustness and ease-of-operation of fully automatic transmissions are convincingly demonstrated in Dakar 2019, one of the world’s toughest endurance motor sport events

INDIANAPOLIS – Vehicles equipped with Allison fully automatic transmissions have taken first, third and fourth places in the truck division at the Dakar Rally, the off-road event acknowledged as one of the toughest in the motor sport world. The 10-day high-speed endurance test attracted the participation of almost 200 trucks, cars, motorcycles and racing ‘specials’, and challenged competitors with 3,440 miles (5,537 km) of rocky dirt roads and sandy deserts with towering dunes.

As further evidence of mechanical robustness, one other Allison-equipped truck also finished in the top 10 in Dakar 2019. In each case the Allison transmission was the 4000 Series, which is designed to make heavy-duty vehicles operate smoothly and efficiently while delivering an unrivaled combination of performance and fuel efficiency.

Dakar 2019 started and finished in the Peruvian capital city of Lima, on the country’s arid Pacific coast, and featured 10 special stages along dirt tracks and through deserts in the south of the country. Each truck carried a crew of three – driver, navigator and mechanic – in a competition that was closely fought all the way to the final day, January 17. Competitors had to maintain a fast pace under the pressure of knowing that even the smallest driving mistake or navigation error could cost them positions on the leaderboard.

Two of the Allison-equipped trucks placing in the top four were scored by the Petronas Team De Rooy Iveco team, with Argentinian rally driver Federico Villagra taking fourth and the team’s Dutch owner, multiple Dakar winner Gerard de Rooy, third. De Rooy’s team switched to Allison fully-automatic transmissions in 2016 after experiencing mechanical failures with other transmissions.

De Rooy explains: “Dakar is very hard on the suspension, the axles and the gearbox. We have close to 5000 Nm of torque, plus the reverse power going back from the axles into the driveline, and the whole system has to stand up to constant impacts. On the hard surfaces, there’s shaking through the steering wheel and a vibration goes through the whole driveline. On really loose sand, which requires us to run with low tire pressure, a lot of heat is created in the gearbox and transmission. It’s really hard on the transmission, but durability is everything. If you have a mechanical problem, you can forget achieving a good result.”

In addition to the transmission’s ability to deal with enormous amounts of engine torque in punishing conditions, de Rooy cites drivability as another reason for choosing Allison. “There are several big advantages with a fully automatic transmission,” he says. “One is that you have constant power and don’t lose momentum or time with shifting, so you make good progress with a constant flow. Another advantage is that the retarder improves braking and saves the wheel brakes. And it’s much calmer in the cabin. You have two hands on the wheel, don’t have to think about shifting, and can just focus on the steering and braking. This really helps.”

Allison Transmission’s 4000 Series is available with close- or wide-ratio gearing and up to seven speeds including two overdrive ratios and a second reverse gear. Engine-driven Power Take-Off (PTO) is available as an option, as is an integral output retarder which provides enhanced vehicle braking and reduces brake wear. Operation is further enhanced by Allison’s 5th Generation advanced electronic controls, which also have prognostics capabilities.

The 4000 Series is used globally in a wide range of vocational applications, including agriculture, construction, distribution, energy, fire and emergency, mining, municipal and utility services, port services, refuse collection, recreational vehicles and motorhomes, and tractors.

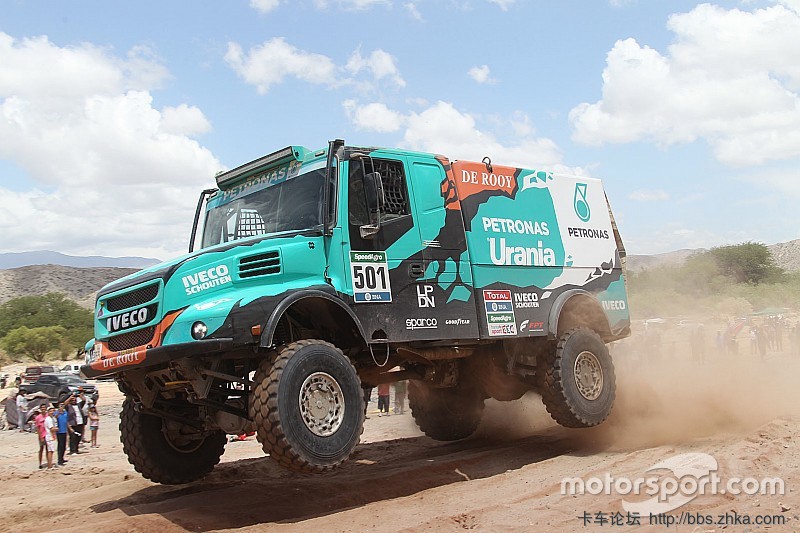

Image – © Team de Rooy. Trucks equipped with Allison transmissions have taken top five positions on the grueling Dakar 2019 rally raid.

th.jpg dakar-dakar-2016-501-iveco-gerard-de-rooy-moises-torrallardona-darek-rodewald.jpg 13-11-2011 De rooy  IVECO.jpg






图片附件: th.jpg (2019-7-21 23:57:17, 34.67 KB) / 下载次数 760
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzI0fDc3MmEwZmY4fDE3NDk0NTk1NTB8MHww



图片附件: dakar-dakar-2016-501-iveco-gerard-de-rooy-moises-torrallardona-darek-rodewald.jpg (2019-7-21 23:57:17, 122.04 KB) / 下载次数 827
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzIzfDMyNTAxODMwfDE3NDk0NTk1NTB8MHww



图片附件: 13-11-2011 De rooy IVECO.jpg (2019-7-21 23:57:15, 48.45 KB) / 下载次数 800
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzIyfDQ3ODQwY2JkfDE3NDk0NTk1NTB8MHww


作者: 邢凯杰    时间: 2019-7-22 00:07:32

本帖最后由 邢凯杰 于 2019-7-22 00:58 编辑

2020年就不止De Rooy Iveco用ALLION变速器了,GIANAF和卡马兹车队据说也用ALLISON,雷诺用ZF ECOLIFE/POWERLINE自动变速器,MAN用了ZF TRAXON.IVECO后勤大军,估计也将会新款了。
IMG_3225-BorderMaker.jpg SP-Iveco-Trakker-Petronas-De-Rooy-Dakar-2012-Servi.jpg 41252-trakker-iveco.jpg 36961-trakker-iveco.jpg



图片附件: IMG_3225-BorderMaker.jpg (2019-7-22 00:57:42, 107.24 KB) / 下载次数 829
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzMxfDFlZjkwODVhfDE3NDk0NTk1NTB8MHww



图片附件: SP-Iveco-Trakker-Petronas-De-Rooy-Dakar-2012-Servi.jpg (2019-7-22 00:57:40, 126.38 KB) / 下载次数 778
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzMwfGUyM2E5OTJlfDE3NDk0NTk1NTB8MHww



图片附件: 41252-trakker-iveco.jpg (2019-7-22 00:57:39, 226.57 KB) / 下载次数 781
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzI5fDVmMzJkYmMwfDE3NDk0NTk1NTB8MHww



图片附件: 36961-trakker-iveco.jpg (2019-7-22 00:57:35, 205.75 KB) / 下载次数 762
http://bbs.zhka.com/bbs/forum.php?mod=attachment&aid=MjE0NzI4fDY4YTNiZDYxfDE3NDk0NTk1NTB8MHww


作者: 耍娃儿    时间: 2019-7-22 01:08:42

邢凯杰 发表于 2019-7-22 00:07
2020年就不止De Rooy Iveco用ALLION变速器了,GIANAF和卡马兹车队据说也用ALLISON,雷诺用ZF ECOLIFE/POWERL ...

后桥单胎
作者: 邢凯杰    时间: 2019-7-22 05:40:25

本帖最后由 邢凯杰 于 2019-7-22 06:00 编辑
耍娃儿 发表于 2019-7-22 01:08
后桥单胎


375/90 R22.5,那条8X8就不知道哪,上一次你拍8X8也是单胎吗? 兄弟。
作者: 邢凯杰    时间: 2019-7-22 06:12:15

本帖最后由 邢凯杰 于 2019-7-22 06:12 编辑

2019年开始卡车组发动机气缸容量限制在13升一下,东风康明斯为ginaf 和卡马玆,提供了部分发动机,KAMAZ也有部分是利勃海尔。
作者: Exceptional    时间: 2019-7-22 06:13:25

With constant power, the durability is everything !
作者: 邢凯杰    时间: 2019-7-22 06:16:51

Exceptional 发表于 2019-7-22 06:13
With constant power, the durability is everything !

13 liter engine with more than 1000 horsepower with over 5000NM torque, engine will blow up after the race.
作者: Exceptional    时间: 2019-7-22 06:32:06

邢凯杰 发表于 2019-7-22 06:16
13 liter engine with more than 1000 horsepower with over 5000NM torque, engine will blow up after  ...

but even the top Cursor 13 is dead less powerfull with 560 hp and the whole world knows it !
作者: 邢凯杰    时间: 2019-7-22 10:07:28

Exceptional 发表于 2019-7-22 06:32
but even the top Cursor 13 is dead less powerfull with 560 hp and the whole world knows it !

Yep, strongly agree.
My friend already own two Case IH all wheel drive tractor come with cursor engine, the max horsepower can tune up to 700HP.
作者: 耍娃儿    时间: 2019-7-22 11:25:28

邢凯杰 发表于 2019-7-22 05:40
375/90 R22.5,那条8X8就不知道哪,上一次你拍8X8也是单胎吗? 兄弟。

后双
作者: Exceptional    时间: 2019-7-22 11:52:29

耍娃儿 发表于 2019-7-22 11:25
后双

后勤保障车应是 twin mount,但比赛用车应是 single mount
