High torque at low speeds; high power-to-weight ratio for the most arduous applications
At Bauma, MAN Engines will be debuting its new straight-six engine, the D4276, with 142 mm bore and 170 mm stroke. This power unit has been developed specially for applications that demand high power with full power operation at up to 70 percent of the duty cycle. It delivers its maximum torque of 3,280 Nm at speeds as low as 1,100 rpm and maintains a constant torque up to 1,500 rpm. The straight-six engine offers not only high torque but also an impressively high power-to-weight ratio. With a dry weight of just 1,280 kilograms, it is one of the lightest engines in its displacement class, and delivers an output between 450 and 515 kW (604 and 690 hp) depending on its power stage. Its design is based on the D3876 engine range, which has been a well-established success on the market since 2014. “We are proud that we can offer our customers an engine that perfectly matches the requirements in the heavy-duty application field but at the same time combines all the advantages of the meticulously developed D3876 engine,” explains Reiner Rößner, head of sales at MAN Engines.
Greater displacement for more power
In this context, the D4276 is represents a consistent progressive development which satisfies the demand for increased power to cope with the toughest off-road applications. Despite the large displacement and the resulting increase in power, the 16.2-litre engine has the same compact installation dimensions as the D3876 (1,464 x 978 x 1,131 mm; length x width x height). This allows designers the freedom to achieve perfect integration of the engine into the machine, even in complex installation situations. In addition, the virtually identical interfaces of the two engine ranges ensure that OEM customers require only a single installation variant – depending on the level of power needed – to allow both the D3876 and also the D4276 to be integrated without major design changes. A major feature of the development has been the ability to reach the highest possible torques in combination with a broad torque plateau for maximum power development. In particular, it has been possible not only to increase the displacement, but also to modify the common-rail injection system. The fuel flow has been significantly improved by the use of a newly developed high-pressure pump. An additional increase in the flow rate through the injectors, coupled with injection pressures of up to 2,500 bar, ensure a perfect combustion process. This provides not only an optimum torque curve, but also an ideal degree of fuel atomisation. This results in lower fuel consumption over a wide map range, coupled with a reduction in particulate emissions. In addition, the powerful six-cylinder engine is also equipped with a VTG (variable turbine geometry) turbocharger proven for use in off-road applications; this helps maintain maximum power and torque over the a wide engine speed range. The D4276 therefore comes in useful for applications such as abrading asphalt, large excavators, mobile cranes and mining trucks, as well as in recycling machines such as shredders.
Expertise applied to ensure high quality and reliability
The D4276 has inherited tried-and-tested components such as the basic power unit from the modern D3876 engine series. As a result, the customer can have confidence in the components taken from long-running mass production, which, in the case of the D3876, have already been fitted to thousands of proprietary MAN commercial vehicles since 2014. In addition, the MAN Engines engineers have benefited from the experience and expertise from use in a vast variety of agricultural applications, for which the engine has been successfully used since 2016. The D3876 has proved a versatile and robust engine and was awarded “Diesel of the Year” in 2016. The D4276 also features many identical components, as well as proven concepts such as top-down cooling. This involves the coolant being pumped downwards from the top of the engine and distributed longitudinally through the upper cooling jacket of the cylinder head. The coolant flows on a cylinder-specific route along the injector jacket to provide special protection to points subject to high thermal stress in the cylinder head, such as injectors and valve seats. This ensures that a consistently high rate of cooling along the entire cylinder head. Modifications have been made to the crankcase and pistons to further improve the D4276’s cooling system. Since the lightweight design concept was also adopted from the D3876, the D4276 likewise has a dry weight of just 1,280 kg and is one of the lightest and most compact engines in its displacement and performance class. OEM customers will benefit not only from the latest generation of design advantages incorporated in the D4276, but also from MAN’s highly-reputed customer service, which offers high-quality maintenance together with strong availability of spare parts for MAN engines.
Modular exhaust gas aftertreatment
For exhaust gas aftertreatment, the D4276 relies on an exhaust gas recirculation (AGR) system with water cooling. As you would expect, the MAN Engines modular exhaust gas aftertreatment has been configured to suit the requirements of the 16.2-litre unit. The exhaust gas aftertreatment system consists essentially of the two DOC/DPF modules (diesel oxidation catalytic converter/diesel particulate filter), coupled with an SCR (selective catalytic reduction) system. The engine thus meets the most recent emission standards such as EU Stage V and US Tier 4. For countries with less stringent requirements, emissions downgrades to EU Stage IIIA/IIIB are available. These can be satisfied and costs can be saved by leaving out individual components of the exhaust gas aftertreatment system. Engines with no exhaust gas aftertreatment at all satisfy the EU Emissions Directive Stage IIIA, while engines fitted with just the SCR system satisfy EU Stage IIIB. The compact and lightweight exhaust gas aftertreatment system offers the manufacturer flexibility by allowing free choice of where to install components, meaning that solutions can be individually configured for a huge range of applications and target markets.
图片附件: MAN_D4276_Ansicht1_width_1480_height_1110.jpg (2019-7-13 04:23:33, 200.23 KB) / 下载次数 1183
图片附件: MAN_D4276_Ansicht2_width_1480_height_1110.jpg (2019-7-13 04:23:30, 185.5 KB) / 下载次数 1189
邢凯杰 发表于 2019-7-13 04:36
也许下一代MAN 会议TGX D42或者TGX18.690。
配上斯堪尼亚设计的AMT
Exceptional 发表于 2019-7-13 09:05
轻量化大功率发动机，未含机油干重 = 1 280公斤；
FPT 的柯索16 多重？
耍娃儿 发表于 2019-7-13 12:32
卧槽卧槽卧槽
邢凯杰 发表于 2019-7-13 13:20
我等不及下一代TG
耍娃儿 发表于 2019-7-13 14:09
明年去了
邢凯杰 发表于 2019-7-13 14:54
下一届IAA？
耍娃儿 发表于 2019-7-14 11:28
IAA之前，还有沃尔沃的改款
邢凯杰 发表于 2019-7-14 14:04
网上有传言说沃尔沃改了面罩，改了液晶仪表版，和全部发动机都升级了。 ...
耍娃儿 发表于 2019-7-14 14:21
面罩肯定改了，发动机升级不奇怪，全液晶是趋势
邢凯杰 发表于 2019-7-14 23:38
我对SISU怎样吊打瑞典双雄有兴趣，说不定沃尔沃也在弄混合动力。
ghhs 发表于 2019-7-15 08:06
可以理解为D38系列的工程版？利勃海尔会不会换装D42系列？
east-flying 发表于 2019-7-15 15:39
liebherr早就玩自己的了，9508还能再战20年，如果全地面想要更大马力的，新出的18L D976可以考虑。
...
邢凯杰 发表于 2019-7-16 03:18
LIEBHERR的9508是一台好发动机，我修过D956,D9508,D9512.
LIEBHERR和MAN的发动机给我留下最大的印象是安静 ...
east-flying 发表于 2019-7-16 07:48
9508技术就是当年和man合作学来的，95系列是lieb按照9508一步步增减港数玩出来的。
VV的超大挖机搞了好多 ...
重型专项作业车 发表于 2019-7-17 04:47
我一直都认为新能源就是忽悠是个骗局，就是怕传统的柴油机汽油机领域被我们中国人所赶超。你看最近几年欧洲 ...
邢凯杰 发表于 2021-1-20 06:02
新能源就是一个骗局，现在中国电气化全球最猛，看看到时候换电池弄死多少人。
...
邢凯杰 发表于 2021-1-20 06:02
新能源就是一个骗局，现在中国电气化全球最猛，看看到时候换电池弄死多少人。
...

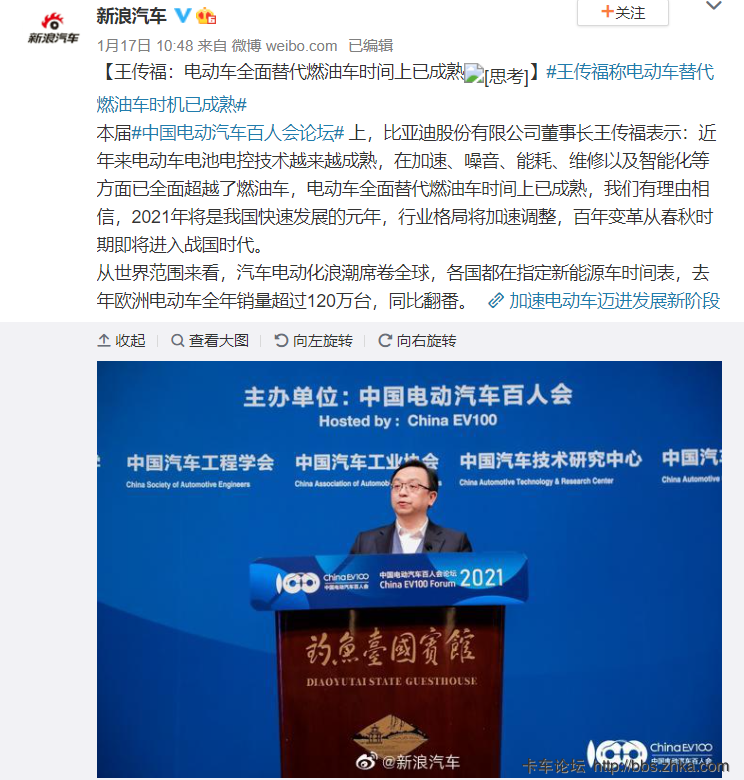

图片附件: QQ图片20210120092127.png (2021-1-20 09:22:00, 310.4 KB) / 下载次数 111
耍娃儿 发表于 2021-1-20 09:20
骗补王
耍娃儿 发表于 2021-1-20 09:22
恶心不
邢凯杰 发表于 2021-1-20 11:35
深圳公交已经死的很悲催。
冉阿让 发表于 2021-1-20 12:18
怎么悲催？
邢凯杰 发表于 2021-1-20 12:45
一大堆电池问题。
耍娃儿 发表于 2021-1-20 09:22
恶心不
冉阿让 发表于 2021-1-20 13:18
能更详细点吗？深圳人，对本市公交很有兴趣
Exceptional 发表于 2021-1-20 13:26
为自己站台。。。理所当然
机械式发动机啃了辣么多年，又是引进又是消化，但迄今有几个真正能拿出手 ...
邢凯杰 发表于 2021-1-20 11:41
他老婆在加拿大行贿加拿大检查人员。
搞到BYD差点被列入黑名单。
耍娃儿 发表于 2021-1-20 14:24
婊子立牌坊
邢凯杰 发表于 2021-1-20 13:40
深圳一堆五洲龙有问题。
